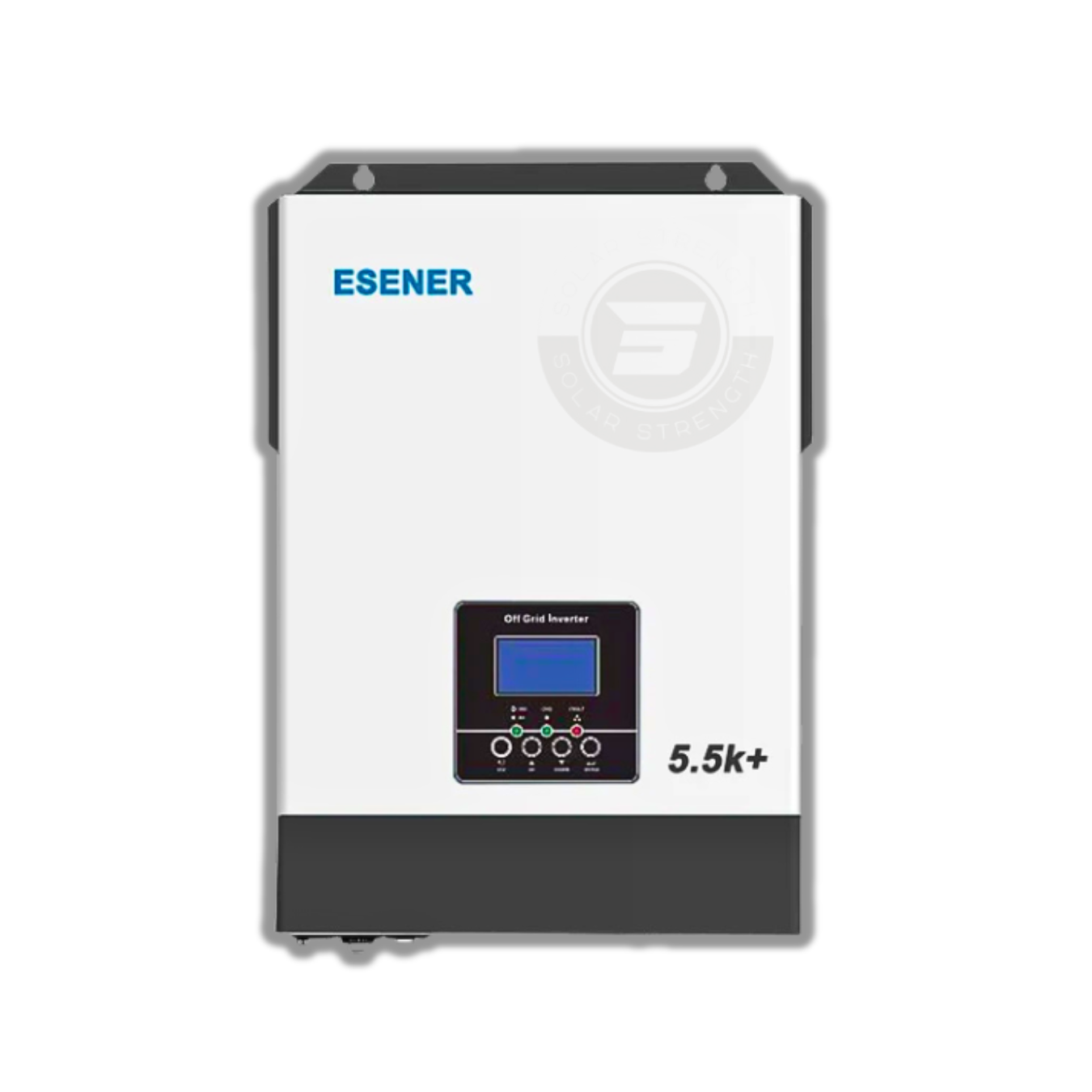

ESENER 5.2kW Hybrid Inverter Pro

The ESENER 5.5kw Inverter features a remarkable output power factor of 1, offering seamless integration with your energy needs. Its versatility shines through with multiple output priority options, including UTL (Utility), SOL (Solar), SBU (Solar Battery Utility), and SUB (Solar Utility Battery) modes. This flexibility empowers you to tailor the system to your specific requirements, maximizing the utilization of your solar-generated power.

Key Specifications and Features :

• Nominal Voltage: 220/230V AC
• Battery Voltage: 48V DC
• Floating Charge Voltage: 54V DC
• Overcharge Protection: 63V DC
• Surge Power: 11000VA
• Maximum PV Array Power: 5500W
• Maximum PV Array Open Circuit Voltage: 500V DC
• PV Array MPPT Voltage Range: 120V-450V DC
• Pure Sine Wave Output for clean and stable power
• High PV input voltage range for efficient solar energy utilization
• Integrated 100A MPPT Solar Controller for optimized power conversion
• Multiple output priority modes (UTL, SOL, SBU, SUB) for customizable energy management
• Scalable parallel operation of up to 12 units for expanded energy capacity
• Support for both single-phase and three-phase parallel configurations
• Wireless parallel capability eliminates the need for extra sharing current cables
• Warranty: 1 Year repair
• Gross weight (kg)9.00
• Product width in cm38.00
• Product depth in cm20.00
• Product height in cm52.00
