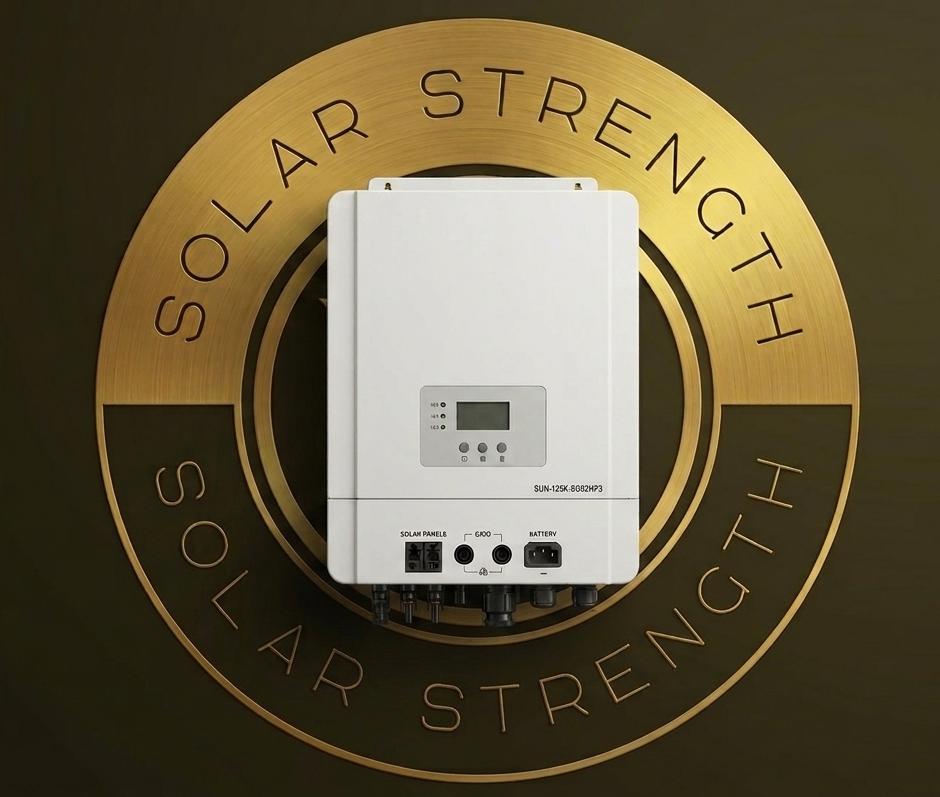

DEYE 125kW 3-Phase High Voltage Hybrid Inverter | SUN-125K-SG02HP3-EU-GM10

Description

Overview
The DEYE 125kW 3-Phase High Voltage Hybrid Inverter is a flagship industrial-grade solution built for large-scale commercial and industrial solar projects. Designed for maximum power output and durability, this unit provides an unmatched level of control and reliability for heavy-duty energy requirements, ensuring seamless power for factories, warehouses, and large facilities.

Key Features
​Massive Power Output: 125kW rated capacity designed to handle high-energy industrial machinery and complex commercial environments.
​Superior Solar Harvesting: Features 10 independent MPPT trackers with 2 strings per MPPT, allowing for maximum efficiency even on complex rooftop layouts with varied shading or orientations.
​High-Voltage Hybrid Flexibility: Supports high-voltage lithium-ion battery systems (160V–1000V) for faster, more efficient energy conversion compared to low-voltage alternatives.
​Scalable Architecture: Easily connect up to 10 units in parallel to expand your total system capacity as your business energy needs grow.
​Intelligent Management: Built-in support for grid, solar, battery, and diesel generator integration with six programmable time-of-use settings for “peak shaving”.
​Rugged Design: IP65-rated for superior protection against dust and moisture, suitable for harsh outdoor industrial environments.

​Technical Specifications
​Model: SUN-125K-SG02HP3-EU-GM10
​Rated Power: 125,000W (125kW)
​Max PV Input Power: 200,000W
​MPPT Trackers: 10 Independent Trackers
​Battery Voltage Range: 160V – 1000V
​Max Efficiency: 98.70%
​Protection Rating: IP65
​Why Choose the Deye 125kW Hybrid Inverter?
When your business requires uncompromising power and the ability to manage complex energy demands, this inverter is the ultimate backbone for your solar-plus-storage installation. It provides the stability and intelligent backup capabilities required to shield your operations from load shedding and rising grid costs.
​Next Steps
Need expert guidance on designing a system around this 125kW unit? Contact the Solar Strength team today for a free consultation.
