Description
Full Product Description

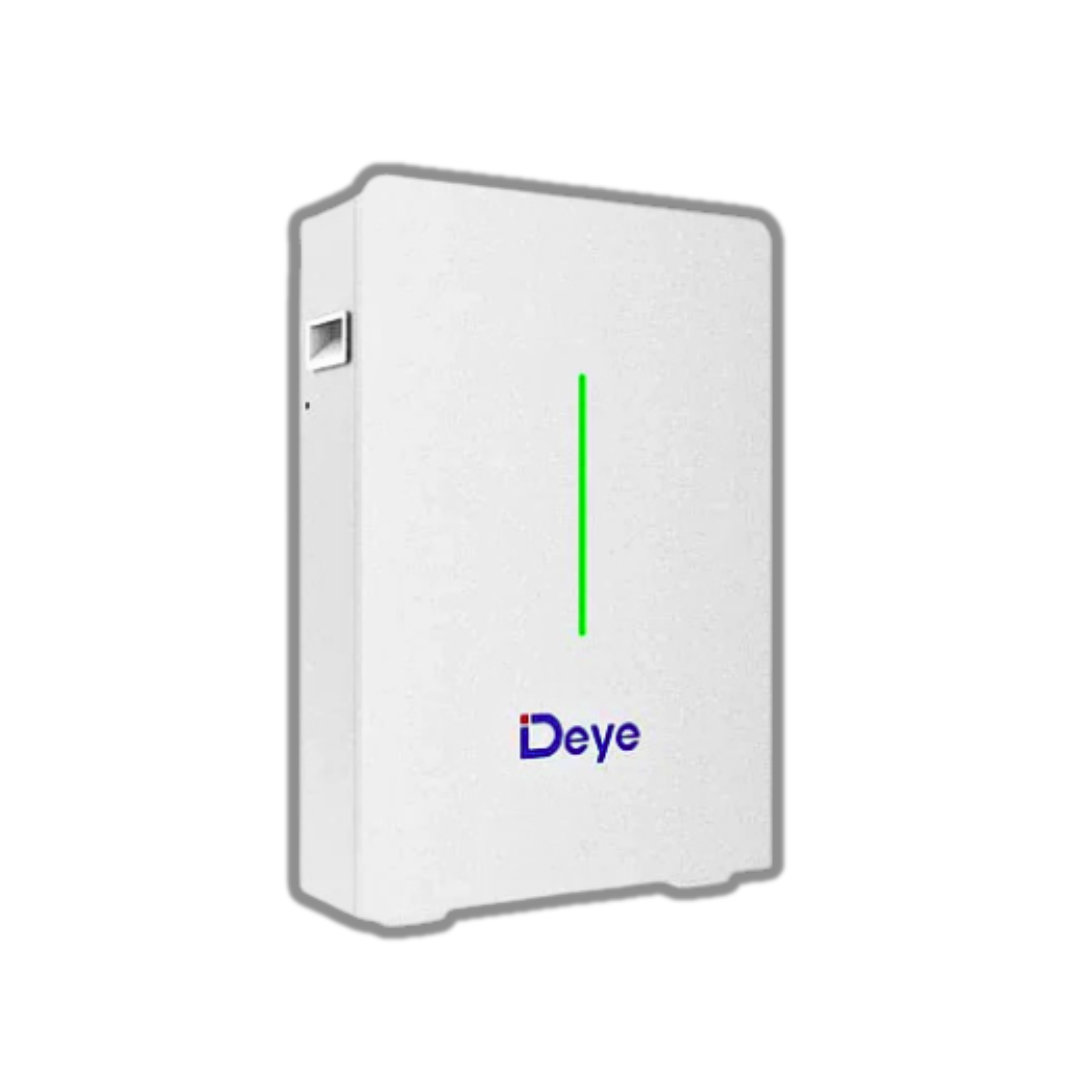

The Deye RW-G10.6 10.6kWh lithium Battery is engineered to meet the growing demands of modern solar systems. Unlike standard batteries, this unit features 10.64kWh of total capacity, with 9.58kWh readily available for use. Because of this high capacity, it powers large homes, solar hybrid systems, and small commercial setups without compromise.
Furthermore, it incorporates advanced LiFePO₄ (Lithium Iron Phosphate) chemistry, which enhances both thermal stability and safety. In addition, the smart 125A BMS continuously monitors every cell, balancing voltages and preventing issues such as overcurrent, overvoltage, or thermal overload.
What sets the Deye RW-G10.6 10.6kWh Battery apart is its seamless compatibility with Deye, LuxPower, Growatt, and other top-tier hybrid inverters. Thanks to integrated CANBus and RS485 protocols, you’ll experience plug-and-play configuration without complex firmware updates.
Moreover, the unit supports up to 32 parallel connections. Consequently, the system is scalable to an impressive 340kWh of total storage, making it suitable not only for residential solar but also for agricultural, industrial, or community microgrids.
Installation is also remarkably straightforward. While some batteries require bulky enclosures, the Deye RW-G10.6 10.6kWh Lithium Battery features a sleek wall-mount or optional floor-standing design. This flexibility saves space and improves accessibility for maintenance and monitoring.
Certified to international standards like TÜV, CE, and UN38.3, this battery is not only powerful but also fully compliant for use in diverse regulatory environments. And finally, its rugged build, combined with over 6,000 life cycles at 80% DoD, ensures you’re making a long-term investment in energy resilience.
✅ Key Benefits Deye RW-G10.6 10.6kWh Lithium Battery
-
🔋 High Storage – 10.64kWh total (9.58kWh usable) for residential and hybrid systems
-
⚙️ Smart Battery Management – 125A BMS with built-in circuit breaker
-
🔁 Long Life – Over 6000 charge cycles at 80% DoD
-
📶 Universal Communication – CANBus & RS485 compatible with Deye, LuxPower, Growatt
-
📦 Flexible Install – Wall-mount or optional floor-stand design
-
📈 Massively Scalable – Connect up to 32 units for 340kWh total capacity
-
✅ Certified Safe – TÜV, UN38.3, and CE approved
✅ Technical Specifications
| Specification | Detail |
|---|---|
| Model | Deye RW-G10.6 |
| Nominal Voltage | 51.2V |
| Usable Capacity | 9.58kWh |
| Total Capacity | 10.64kWh |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Max Parallel Units | 32 (340kWh) |
| Communication | CANBus, RS485 |
| BMS | Integrated Smart 125A BMS |
| Mounting | Wall-Mount / Optional Floor Stand |
| Weight | 96kg |
| Size | 600mm x 750mm x 200mm |
| Certifications | TÜV, UN38.3, CE |
| Warranty | 5-Year Standard Warranty |
