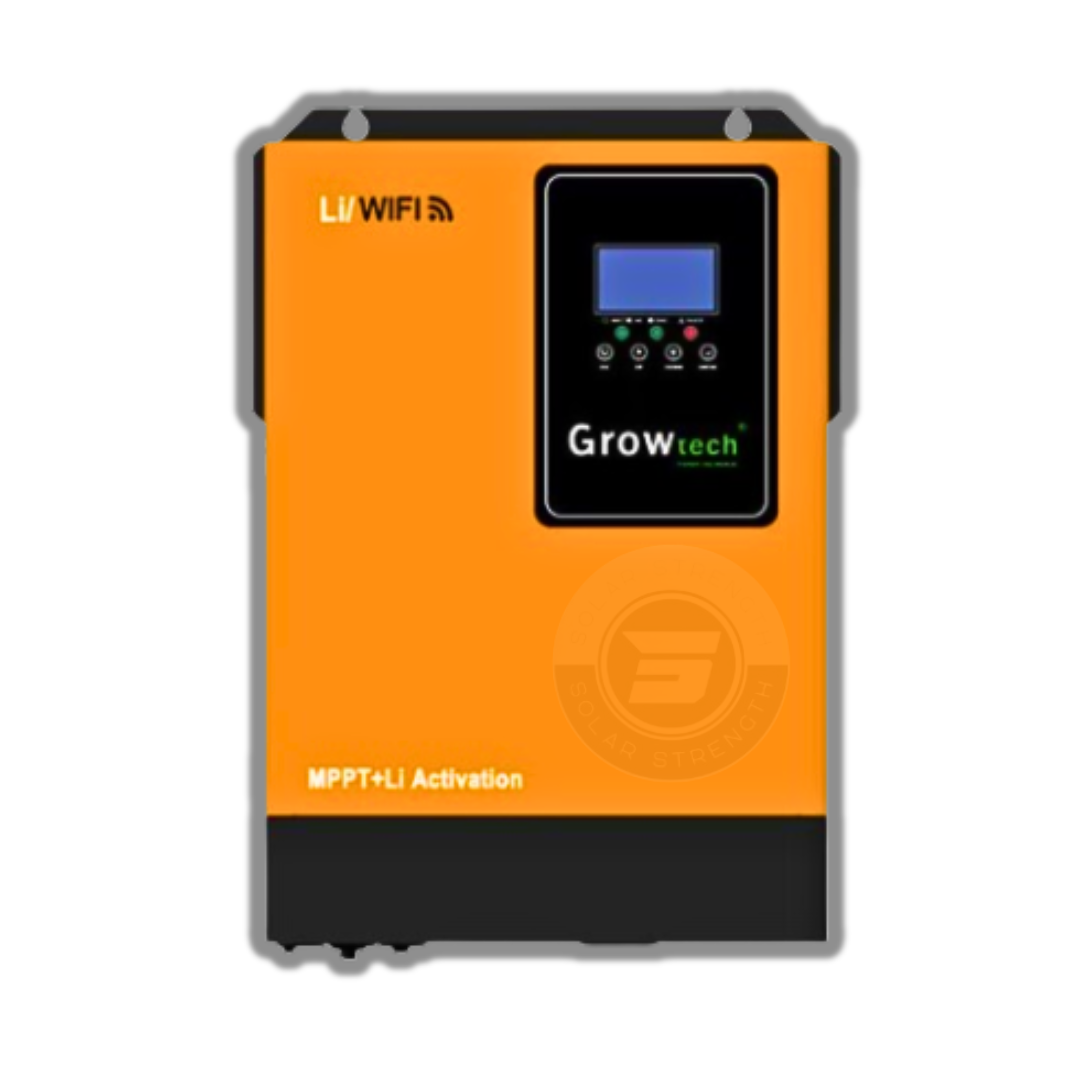

Growtech 5.5KW Inverter 100A – MPPT – 48V

The Growtech 5.5KW Inverter 100A MPPT 48V is a reliable and efficient solar inverter designed for single-phase non-parallel systems. It generates a pure sine wave output with a power factor of 1.0, ensuring compatibility with a wide range of electrical devices. With its high PV input voltage range of up to 500Vdc, this inverter can handle various solar panel configurations and maximize power conversion efficiency.

Equipped with a built-in MPPT solar charge controller, the Growtech inverter efficiently converts solar energy into usable electricity, optimizing power generation from your solar panels. The detachable dust cover adds an extra layer of protection, making it suitable for use in harsh environmental conditions.

The Growtech 5.5KW Inverter offers the flexibility of multiple output priority options: UTL, SOL, SBU, and SUB. This allows you to prioritize utility power (UTL), solar power (SOL), or battery power (SBU/SUB) based on your specific requirements. Whether you want to reduce your reliance on the utility grid or take advantage of abundant solar energy, this inverter offers the versatility you need.

For added convenience, the Growtech inverter supports WiFi remote monitoring (optional), enabling you to monitor your solar power system’s performance from anywhere using your smartphone or computer. Please note that the WiFi dongle is not included with the product and currently not available.

Another notable feature of this inverter is its capability to operate without a battery. This can be particularly useful in situations where battery storage is not necessary or temporarily unavailable. However, if you do have a battery connected, the inverter’s battery equalization function helps optimize battery performance and extend its lifecycle, ensuring efficient and reliable operation over the long term.

Specifications:

• INPUTNominal Voltage: 230VAC
• Acceptable Voltage Range: 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto sensing)OUTPUT
• Nominal Voltage: 220/230VAC ±5%
• Surge Power: 11000VA
• Frequency: 50/60Hz
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (For Personal Computer); 20ms (For Home Appliances)
• Peak Efficiency (PV to INV): 96%
• Peak Efficiency (Battery to INV): 93%
• Overload Protection: 5s @ >=150% load; 10s @ 110%~150% load
• Crest Factor: 3:1
• Admissible Power Factor: 0.6~1 (inductive or capacitive)

BATTERY

• Battery Voltage: 48VDC
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC / CV
• Lithium Battery Activation: YES
• Lithium Battery Communication: YES (RS485)

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Max.PV Array Power: 5500W
• Max.PV Array Open Circuit Voltage: 500VDC
• PV Array MPPT Voltage Range: 60VDC~500VDC
• Max.Solar Input Current: 18A
• Max.Solar Charge Current: 100A
• Max.AC Charge Current: 80A
• Max.Charge Current (PV+AC): 100A

PHYSICAL

• Dimensions D x W x H (mm): 438x295x 105
• Package Dimensions D x W x H (mm): 560x375x185
• Net Weight (Kg): 9
• Communication Interface: RS232+RS485

ENVIRONMENT

• Operating Temperature Range: -10℃ to 50℃
• Storage Temperature: -15℃ ~ 50℃
• Humidity: 5% to 95% Relative Humidity (Non-condensing)

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
