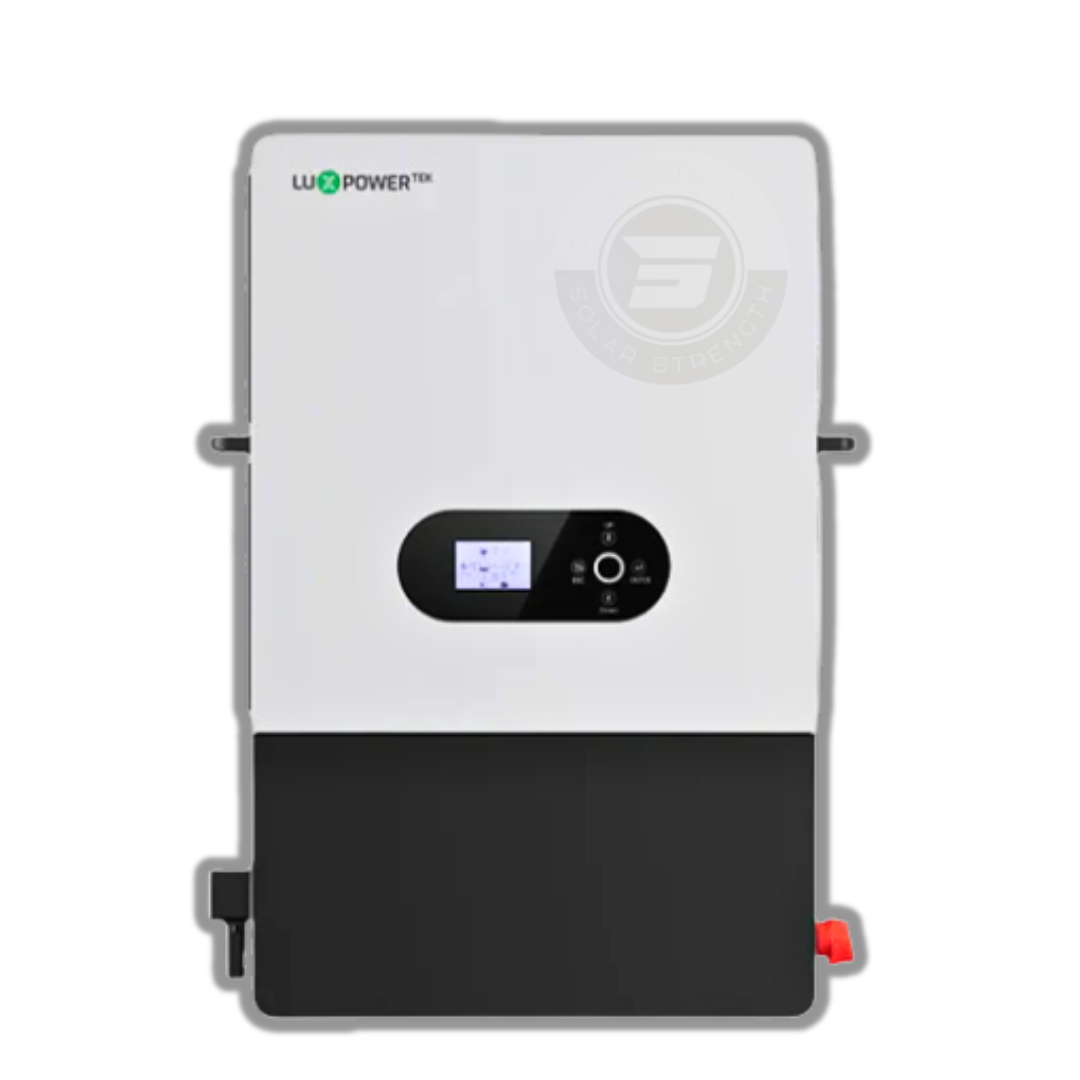

LuxPower 12kW Single Phase Eco Hybrid Inverter (SNA12000)

Product Features

• Eco Hybrid Technology
• Energy Management System (EMS)
• Remote Monitoring and Control
• Compact and Robust Design
• LCD screen for system status and performance indicators
• Safety and Protection
• 2 MPPTs with 4 strings, Max. 24kW PV input
• Max. charging and discharging current: 250A
• Off-grid application for high demand with 12kW output power
• Dual AC output ports for multiple load connections
• Separate GEN port-Up to 19.2kW Gen/AC coupling input-Auto generator start and stop control
• Integrated Design with Load and Battery Breaker
• PV or AC or Generator wake up battery

Detailed Key Features

• High Power Output:
  • With a 12kW maximum output, this inverter is ideal for medium to large-sized residential homes or small commercial setups.
  • Provides reliable power for everyday consumption while supporting energy storage and backup power needs.
• Eco Hybrid Technology:

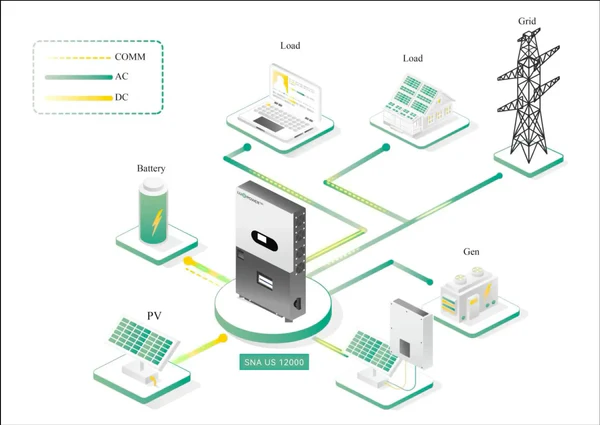

  • Optimizes solar energy generation and consumption by combining solar power, battery storage, and grid integration into one cohesive system.
  • Allows users to reduce dependence on the grid by storing excess solar energy for later use and feeding surplus energy back to the grid.
• Seamless Backup Power:
  • Ensures uninterrupted power during grid outages with automatic transition to backup mode.
  • Keeps critical systems and appliances running when the grid is down, enhancing system reliability.
• Flexible Energy Storage Integration:
  • Supports multiple battery types, including LiFePO4, Lithium-ion, and Lead-Acid batteries.
  • Easily integrates with energy storage systems, allowing users to scale up storage capacity as their energy needs increase.
• Energy Management System (EMS):
  • Built-in EMS optimizes the flow of energy between the solar panels, battery storage, and the grid.
  • Provides real-time monitoring and control of energy production, consumption, and storage, allowing users to track and optimize energy usage.
• Remote Monitoring and Control:
  • Features Wi-Fi connectivity for easy remote monitoring through a mobile app or web portal.
  • Provides users with the ability to track system performance, diagnose issues, and adjust settings remotely.
• High Efficiency:
  • Achieves 98.6% peak efficiency, ensuring minimal energy loss during the conversion process.
  • The MPPT (Maximum Power Point Tracking) function ensures the inverter operates at optimal performance in varying environmental conditions, maximizing solar power generation.
• Compact and Robust Design:
  • Designed with a compact, space-saving form factor that makes installation easy in both indoor and outdoor environments.
  • With an IP65 rating, the inverter is dustproof and water-resistant, thereby ensuring durability in all weather conditions and enhancing its reliability for both indoor and outdoor installations.
• Safety and Protection:
  • Includes advanced safety features such as over-voltage, over-current, short-circuit, and over-temperature protection.
  • Fully compliant with international standards to ensure safe operation for both residential and commercial applications.

Technical Specifications

• Max. PV array power (W): 24000 (12000/12000)
• Rated PV input voltage (V): 320
• Number of independent MPPT inputs: 2/(2:2)
• PV input voltage range (V): 100-480
• MPPT voltage range (V): 120-385
• Start-up voltage (V): 100
• Max. PV input current per MPPT (A): 35/35
• Max. PV short-circuit current input per MPPT (A): 44/44
• Battery Specifications:
  • Battery Voltage Range: 44V – 58V
  • Battery Charging Current: 60A
  • Maximum Battery Charging Power: 3.6kW
  • Battery Type: Compatible with LiFePO4, Lithium-ion, and Lead-Acid batteries
  • Number of Battery Strings: 1-2 strings (depending on capacity)

Applications of the LuxPower 12kW Single Phase Eco Hybrid Inverter (SNA12000)

1. Residential Solar Energy Systems:
   • Ideal for households looking to maximize solar energy production, store excess energy for later use, and reduce reliance on grid electricity.
   • Ensures backup power during grid outages and reduces energy costs.
2. Commercial Solar Energy Systems:
   • Perfect for small to medium-sized commercial installations, it provides reliable and efficient energy management for daily consumption, while also offering seamless backup power when needed.
3. Hybrid and Off-Grid Solar Systems:
   • Can be used in both hybrid grid-connected and off-grid systems, offering flexibility for a wide range of installations.
   • Provides reliable power in off-grid areas, ensuring energy independence.
4. Energy Storage Systems:
   • The LuxPower SNA12000 is compatible with various battery technologies, allowing for energy storage that can be utilized when solar generation is insufficient.

The LuxPower 12kW Single Phase Eco Hybrid Inverter (SNA12000) offers a versatile, efficient, and scalable energy management solution, making it ideal for homeowners and businesses aiming to reduce energy costs, optimize solar energy use, and ensure an uninterrupted power supply.

Moreover, with its robust features, high efficiency, and seamless integration with energy storage systems, the SNA12000 stands out as the perfect choice for anyone looking to take control of their energy future.

5 Years Warranty

• Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
