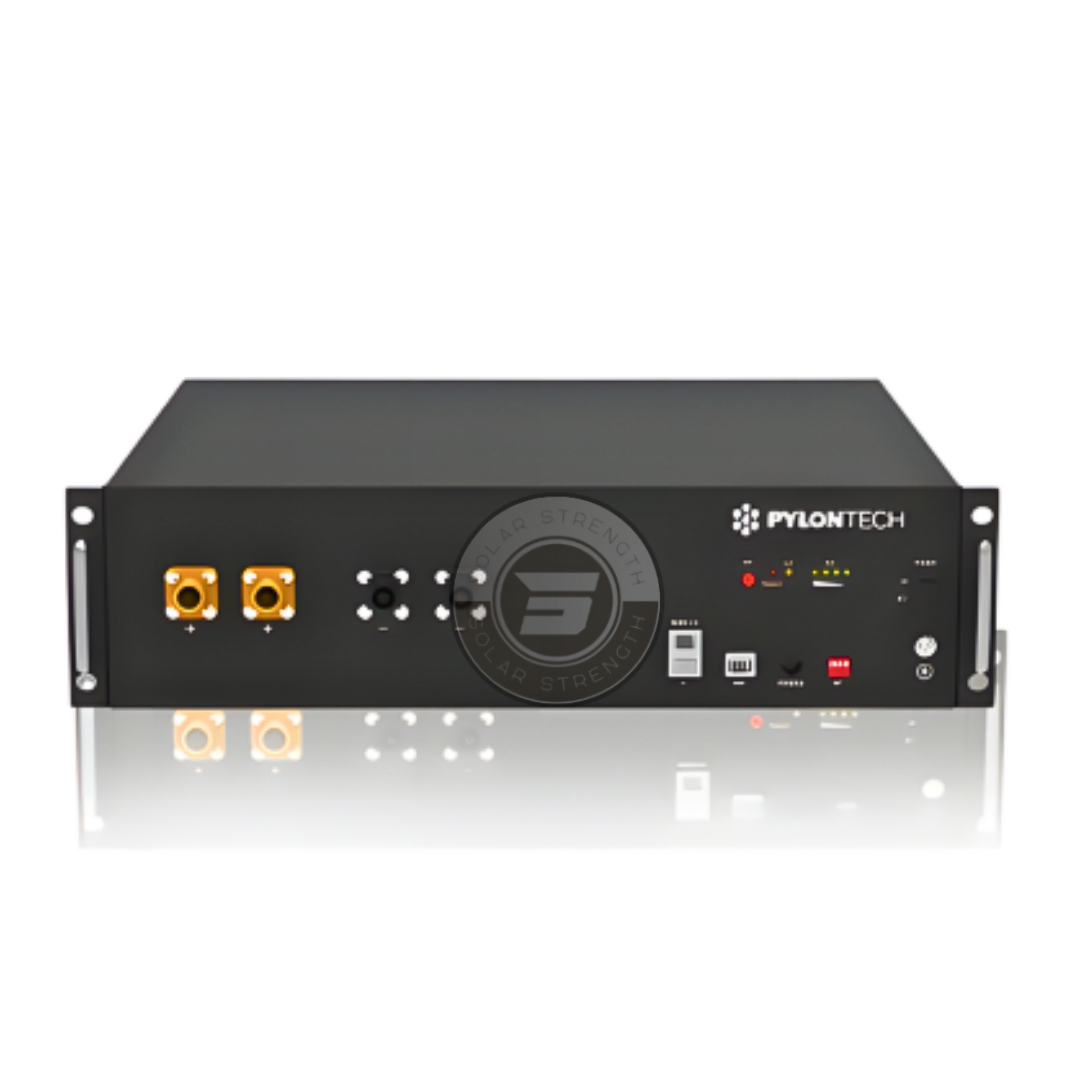

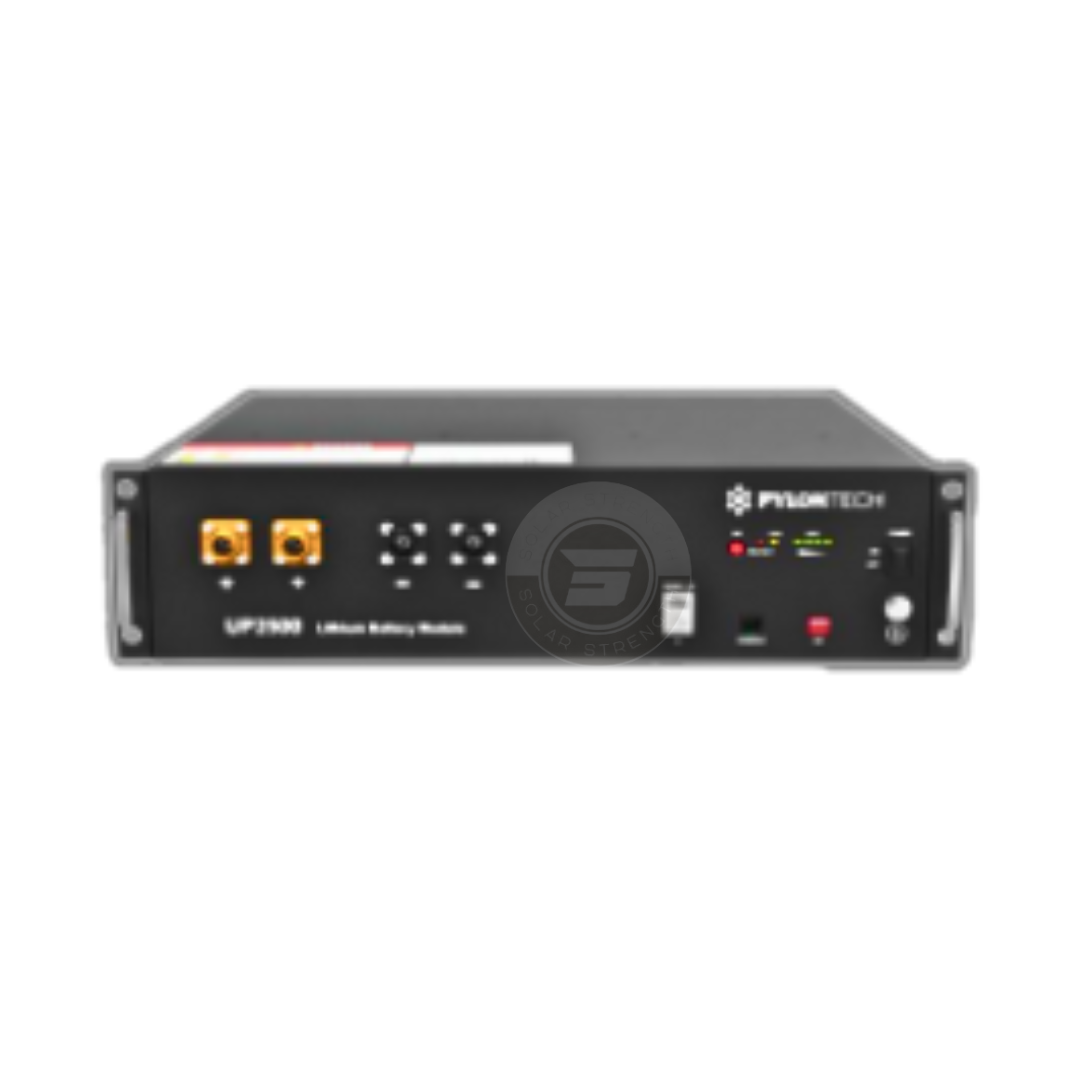

Engineered for excellence, the PylonTech – UP2500 2.84kWh Li-Ion 24V Battery delivers advanced lithium-ion energy storage designed to withstand frequent discharges, extended loadshedding, and system expansion. Moreover, with high-grade LFP cells and built-in Battery Management System (BMS), the UP2500 ensures optimal safety, longevity, and performance throughout its lifecycle.
Because of its modularity, users can conveniently expand storage with additional units as energy demand increases. Not only does this feature benefit homes growing into larger solar setups, but it also supports commercial energy planning for future scalability.
Additionally, the UP2500 supports deep cycling, allowing up to 90% Depth of Discharge, which guarantees more usable energy from each full charge. Thanks to its wide voltage and temperature tolerance, the unit performs reliably in diverse climates, particularly across Southern Africa.
Integrated with RS485 and CAN communication protocols, it syncs effortlessly with inverters from Victron, Growatt, Sunsynk, and other industry leaders. As a result, system configuration and monitoring become simple and intuitive.
Lastly, this battery is engineered to resist over-voltage, overheating, and short-circuiting while remaining lightweight and compact—perfect for rackmount or wall-mounted installations in tight spaces.
📚 Learn more about solar-ready lithium battery kits and visit our inverter and solar panel bundles for turnkey systems.
🌟 Key Benefits PylonTech – UP2500 2.84kWh Li-Ion 24V Battery
✅ 2.84kWh lithium-ion storage for off-grid and hybrid systems
🔁 Modular expansion for scalable solar setups
⚡ Deep-cycle design supports 90% DoD
🧠 Smart BMS with CAN/RS485 inverter communication
🔌 Seamless integration with Victron, Sunsynk, Growatt
🛡️ Advanced safety with overcharge and short circuit protection
🌡️ Wide operating temperature for African climates
📉 Low self-discharge preserves charge in storage
📦 Compact rackmount design for neat installations
🛠️ 7-year warranty + 15-year design life
📊 Technical Specifications Table PylonTech – UP2500 2.84kWh Li-Ion 24V Battery
| Feature | Specification |
|---|---|
| Model | UP2500 |
| Battery Type | Lithium-Ion (LFP) |
| Nominal Capacity | 2.84kWh |
| Nominal Voltage | 24V |
| Depth of Discharge | 90% |
| Cycle Life | > 6000 cycles @ 90% DoD |
| Communication Protocols | CAN, RS485 |
| Compatible Inverters | Victron, Sunsynk, Growatt, and more |
| Operating Temp Range | -10°C to +50°C |
| Dimensions (W×H×D) | 442 × 420 × 100 mm |
| Weight | 24 kg |
| Mounting Style | Rackmount / Wall-Mount |
| Warranty | 7 Years |
