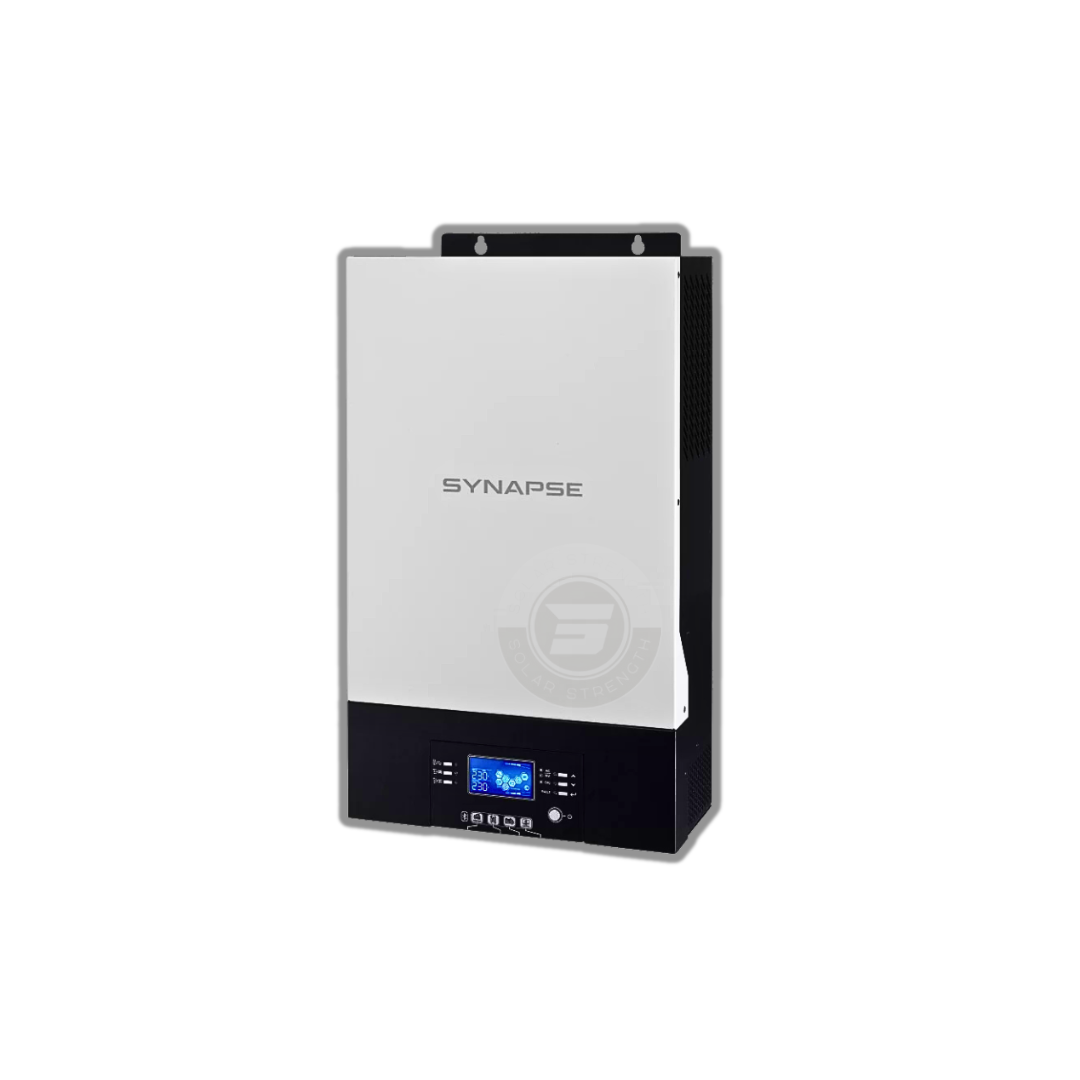

🌀 Synapse 5.0K+ Offgrid Inverter – Reliable Power with High Flexibility
The Synapse 5.0K+ Offgrid Inverter delivers clean, 5 kW pure sine wave output with fast response transfer time. It includes built-in 80 A MPPT solar charging to maximize panel input efficiency, and it withstands dusty environments with its anti-dust housing—making it ideal for harsh residential or rural setups.
🔗 See Synapse inverter models
🔗 Browse hybrid inverters under 6 kW
🔌 Smart Integration with Battery and BMS Systems
Because the Synapse 5.0K+ Offgrid includes reserved communication ports for RS485, CAN, and RS232, it syncs easily with lithium batteries and BMS protocols. In addition, its battery equalization function optimizes performance and longevity of 48 V LiFePO₄ battery banks.
🔗 Compatible battery banks and brands
⚡ Expandable and Flexible Configuration
Moreover, you can parallel up to nine Synapse 5.0K+ Offgrid Inverter units in a single system to scale output and capacity. Independent installers appreciate its ability to run without a battery bank connected, enabling solar PV use in startup or test conditions.
🔗 Guide to paralleling inverters
📱 User-Friendly Interface and Monitoring
Furthermore, this inverter supports Bluetooth monitoring, a detachable LCD module, and USB OTG—making setup and diagnostics straightforward. Because it also supports grid/generator AC input, the Synapse 5.0K+ Offgrid offers backup flexibility for intermittent grid scenarios without supporting grid feed-in.
🔗 Learn about monitoring setup for inverters
🔐 Built for Safety and Local Conditions
Importantly, the Synapse 5.0K+ Offgrid Inverter meets essential local regulatory needs—although note it lacks NRS-097-2-1 certification, making it unsuitable for grid-tied systems in certain municipalities. Instead, it’s ideal for off-grid or generator backup setups where grid feedback is prohibited.
Key Benefits – Synapse 5.0K+ Offgrid Inverter
-
🔋 Reliable 5 kW Pure Sine Output – Clean power for sensitive electronics
-
☀️ 80 A MPPT Included – Optimal solar panel harvesting
-
🔄 Parallel up to Nine Units – Scalable for growing systems
-
🔧 Battery Equalization Feature – Extends battery life and performance
-
🌐 Bluetooth + RS485/CAN Connectivity – Easy monitoring and integration
-
🛠️ Designed for Harsh Environments – Dust-resistant and rugged design
-
⚙️ Zero Transfer Time – Protects critical loads instantly
-
🔗 Optional AC/Generator Input – Backup support when grid is unreliable
Technical Specifications :Synapse 5.0K+ Offgrid Inverter
| Feature | Specification |
|---|---|
| Model | Synapse 5.0K+ Offgrid Inverter |
| Rated Power | 5000 VA / 5000 W |
| Input Voltage (Battery) | 48 V DC |
| MPPT Charge Current | 80 A |
| Max PV Input Power | ~4000–6500 W ~ depending on config |
| MPPT Voltage Range | 60–115 V DC (PV side) |
| Surge Capacity | 10000 VA (5 sec) |
| Transfer Time | 0 ms for critical loads |
| Efficiency (Peak) | ~93% Line Mode / 90% Battery Mode |
| Connections | USB / RS232 / CAN / RS485 / BT |
| Parallel Use | Up to 9 units |
| Operating Temp Range | 0 °C to 55 °C |
| Dimensions | ~100 × 300 × 440 mm |
| Weight | ~10 kg |
| Certifications | CE only (not NRS-097-2-1 compliant) |
| Warranty | Typically 12 months manufacturer |
