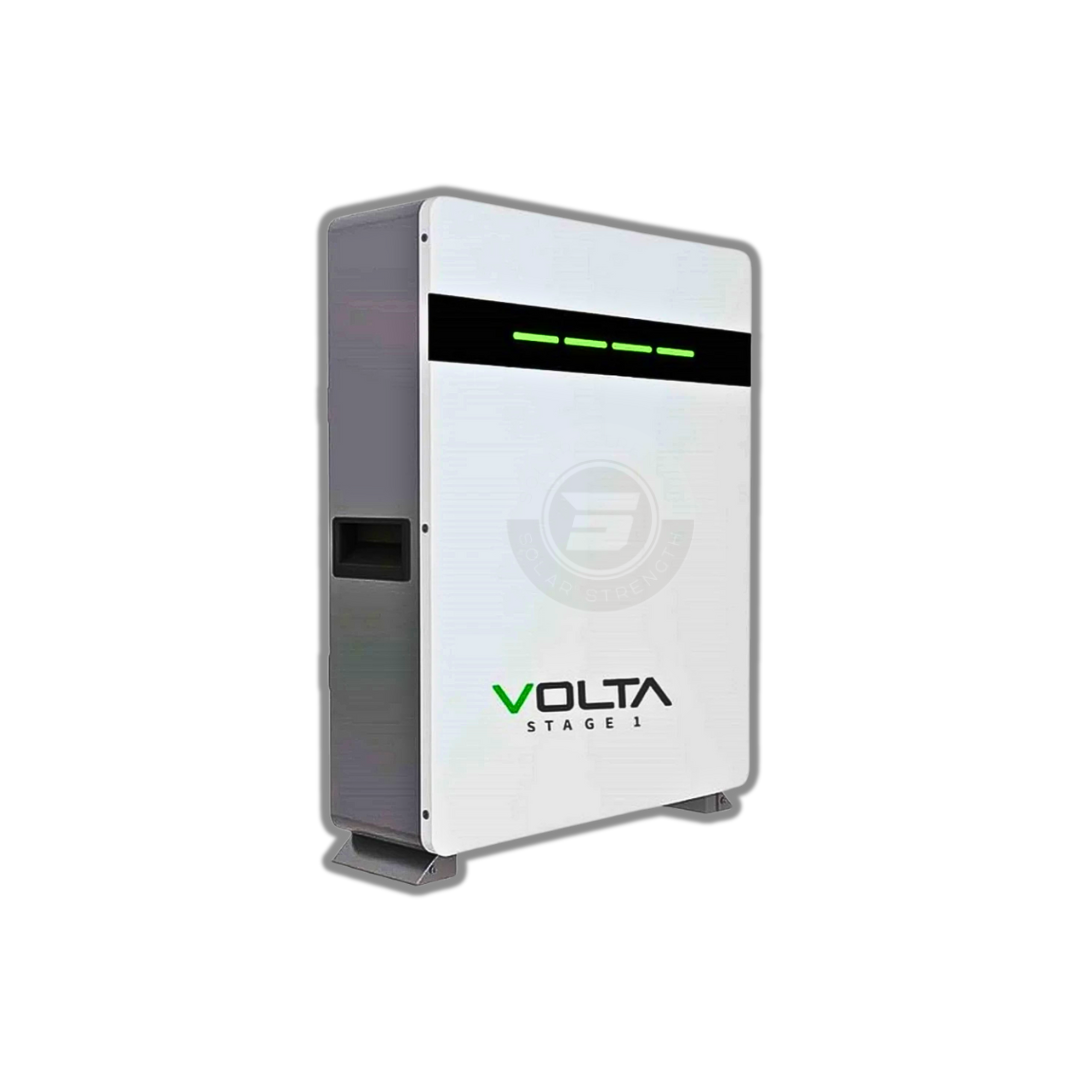

VOLTA Stage 1 Li-Ion 5.12KwH Battery New Generation with Wi-Fi

The VOLTA STAGE 1 – 5.1 kWh Battery is a reliable and cost-effective power storage solution. Its lithium-ion technology offers high energy storage capacity and long-lasting charge retention. Compatible with various inverter brands, it can be easily mounted on walls or placed on the floor. With its exceptional performance and reliability, VOLTA Lithium Batteries are the optimal choice for dependable power sources.

Designed with a nominal energy of 5.12 kWh and a nominal voltage of 51.2VDC, the VOLTA STAGE 1 battery provides ample power for various applications. Its 100Ah nominal capacity, utilizing LFP cells, ensures safety, longevity, and thermal stability. The battery supports 1C/1C continual charge and discharge rates, allowing efficient energy transfer. It has a standard charge voltage of 56VDC and a maximum discharge current of 100A.

The VOLTA STAGE 1 battery offers flexibility in installation with two options: wall mount and floor stand. It includes a wall bracket for easy mounting or can be placed on the floor using the detachable floor stand. With a maximum parallel unit capacity of 8, the battery can scale up to meet higher energy demands. It boasts a design life of 6000 cycles at 80% depth of discharge (DOD) at 25°C, ensuring long-term reliability.

Built to withstand various environmental conditions, the VOLTA STAGE 1 battery has an ingress protection rating of IP20, safeguarding it against solid objects and dust. It operates in a wide temperature range, from 0°C to +65°C during charging and -20°C to +65°C during discharge. For seamless integration, it supports communication protocols such as RS485, RS232, and CAN. With its safety certifications (MSDS and UN38.3), the VOLTA STAGE 1 battery ensures safe and reliable operation.

Specifications:

• Dependable and cost-effective power storage solution
• Utilizes lithium-ion technology for high energy storage capacity
• Rechargeable multiple times without losing charge holding capability
• Compatible with multiple inverter brands
• Two mounting methods: wall mount with included bracket and floor stand
• Nominal energy of 5.12 kWh and nominal voltage of 51.2VDC
• Nominal capacity of 100Ah using LFP cells for safety and long cycle life
• Supports 1C/1C continual charge and discharge rates
• Standard charge voltage of 56VDC and maximum discharge current of 100A
• Discharge cut-off voltage at 44.8VDC for over-discharge protection
• Maximum parallel units capacity of 8 for scalability
• Design life of 6000 cycles at 80% DOD at 25°C
• Ingress protection rating of IP20 for solid object and dust protection
• Wide charge temperature range of 0°C to +65°C
• Wide discharge temperature range of -20°C to +65°C
• Communication compatibility with RS485, RS232, and CAN protocols
• Safety rating compliant with MSDS and UN38.3 standards
• Warranty: 5 years

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
