Description

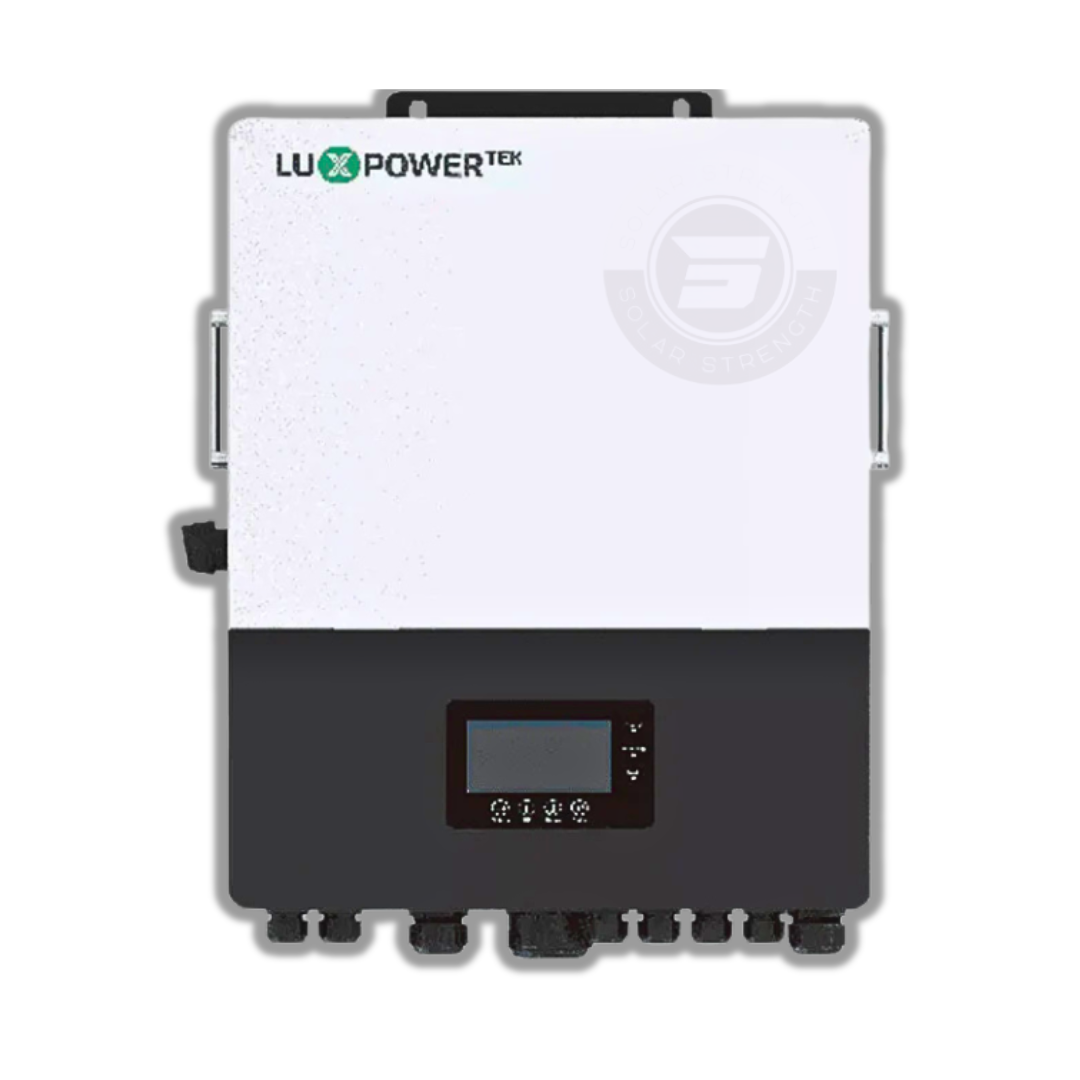

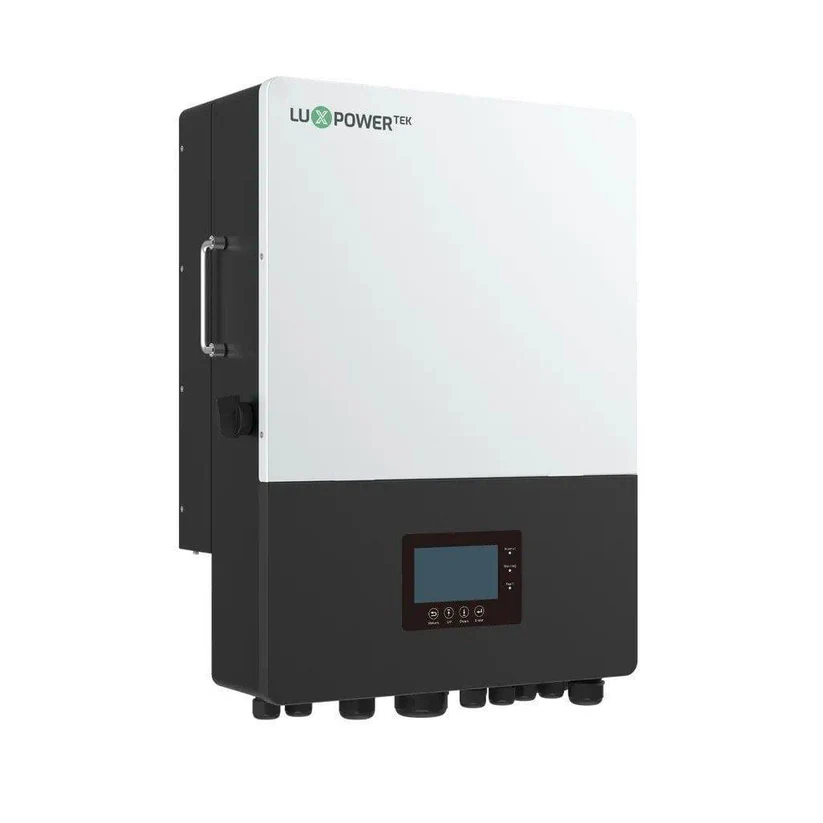

The LuxPower 10kW 48V Hybrid Inverter (LXIN10000) is specifically designed for users who require reliable, flexible, and intelligent energy control. In fact, with its dual MPPT inputs supporting up to 20 kW PV, it consistently ensures optimal solar harvesting even under changing weather conditions. Moreover, for those who wish to compare and explore other models, our Hybrid Inverters Collection offers a wide range of compatible options.
Furthermore, thanks to LuxPower’s advanced hybrid technology, this inverter seamlessly integrates solar panels, solar batteries, grid supply, and generator backup. As a result, homeowners and businesses can significantly reduce electricity costs while also increasing their energy independence. For complete specifications, firmware updates, and official documentation, you can visit the LuxPower Official Website. Additionally, to confirm product certifications, review the relevant guidelines from the South African Bureau of Standards.
In addition, the LXIN10000’s dual AC output ports allow for clear separation between essential and non-essential loads. Consequently, this ensures that critical appliances remain operational even during power outages. It also supports generator input up to 16 kW with automatic start/stop functionality, making it particularly well-suited for off-grid installations and rural areas. For deeper insights into South Africa’s renewable energy growth, consider exploring the South African Photovoltaic Industry Association as well as the Department of Mineral Resources and Energy.
Not only does it offer advanced energy management, but it also boasts an IP20-rated compact design (dimensions 500×750×150 mm, weight 38 kg) with built-in breakers for both battery and load protection. Moreover, real-time system monitoring is made effortless through Wi-Fi or LAN connectivity using the LuxPower mobile app and online portal. Finally, for those seeking global renewable energy best practices, the International Renewable Energy Agency provides excellent resources.
Key Benefits:Luxpower 10KW 48V Hybrid Inverter LXIN10000
-
10 kW Continuous Output – Suitable for medium to large homes or small businesses
-
Dual MPPT Technology – Ensures maximum solar efficiency from multiple arrays
-
Hybrid Energy Integration – Combines solar, grid, and generator seamlessly
-
Essential Load Priority – Keeps critical systems running during outages
-
High Surge Capacity – Handles peak demands effectively
-
Remote Monitoring – Manage your system anywhere, anytime
-
Built-In Safety – Breakers for battery and load protection
-
Scalable Design – Parallel operation with additional units possible
Technical Specifications
| Feature | Details |
|---|---|
| Model | LuxPower LXIN10000 |
| Rated Output | 10 000 W / 10 kVA |
| Max PV Input | 20 000 W (10 kW per MPPT, 2 MPPTs) |
| PV Voltage Range | 100–480 VDC (MPPT window: 120–385 V) |
| Max PV Current | 30 A per MPPT (short circuit: 40 A) |
| Battery Voltage | 48 V / 51.2 V Li-ion or Lead-Acid |
| Charge/Discharge | Up to 200 A / 10 kW |
| Grid Input Voltage | 90–280 VAC |
| Surge Capacity | 2× rated for 5 seconds |
| Switch Time | <10 ms |
| Parallel Capability | Up to 6 units |
| Communication | RS485, CAN, Wi-Fi (dongle) |
| Display | LCD with RGB status |
| Dimensions / Weight | 500×750×150 mm / 38 kg |
| Protection | IP20 |
| Cooling | Smart fan control |
| Warranty | 5 years |
Ideal Applications
-
Medium and large residential properties
-
Small commercial and office spaces
-
Off-grid and rural installations
-
Hybrid setups with generator backup
-
Scalable solar projects with multiple inverters
