Description

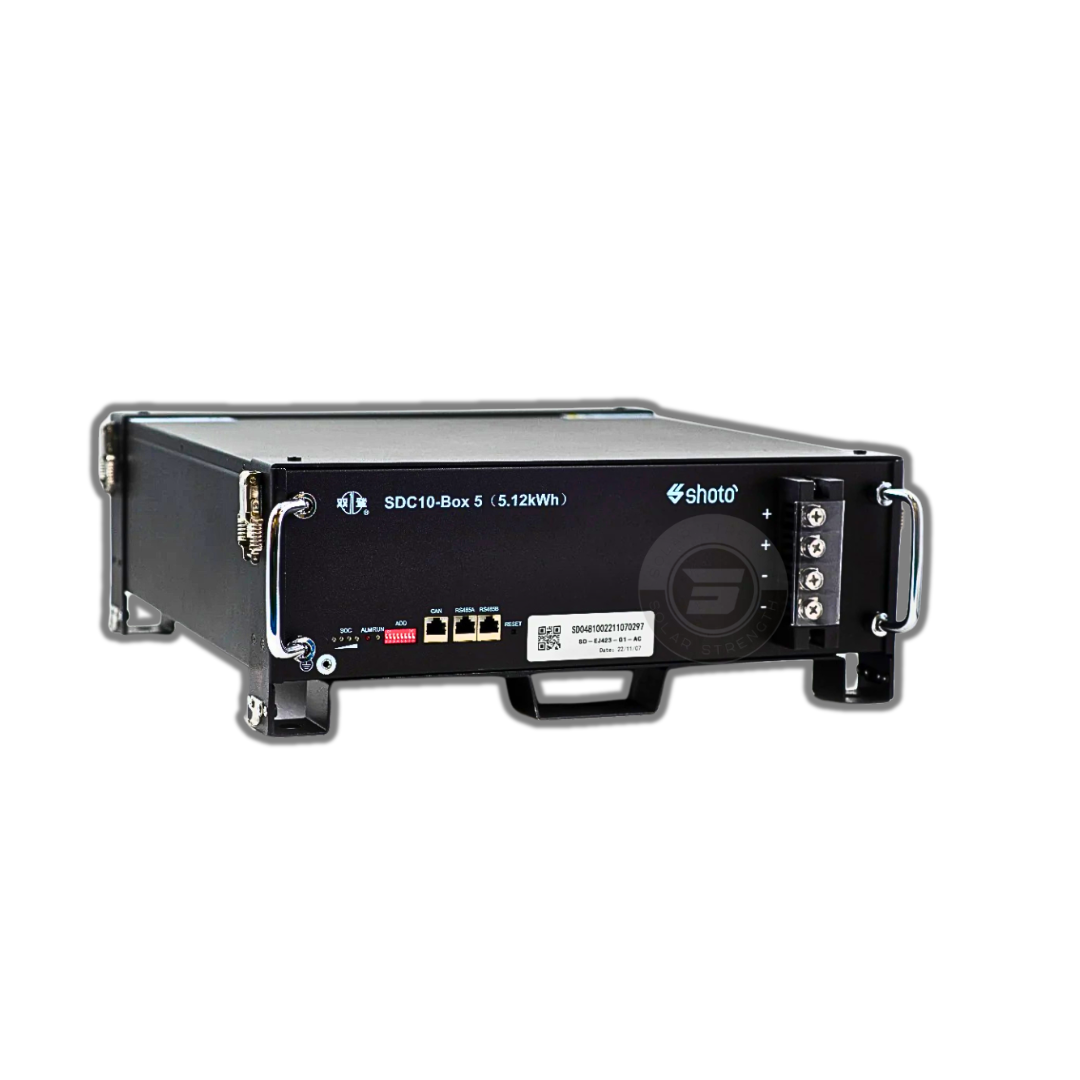

The 5.1kwh Shoto 48v Lithium Battery Rackmount provides unmatched lithium storage stability through intelligent architecture engineered to outlast unpredictable grid conditions and evolving energy demands. Unlike common alternatives, this rackmount unit employs true deep-cycle LiFePO₄ cells—ensuring significantly greater charge depth, thermal resilience, and lifecycle retention even when deployed in dense off-grid setups.
In addition to its robust chemistry, this model seamlessly integrates with top inverter brands, including Sunsynk, Victron, and Growatt. Meanwhile, its high-speed CAN/RS485 communication allows dynamic syncing, unlocking smarter energy flow and fault protection across hybrid installations. Consequently, installers reduce commissioning time, while owners gain real-time system feedback.
What truly separates this model from others is its rack-level scalability—allowing parallel configurations that can power entire homes, lodges, or commercial facilities without compromising floor space. As an internal upgrade option, the Shoto battery offers seamless expansion without reconfiguring your infrastructure, which is especially valuable for phased solar rollouts or modular energy planning.
The Battery Management System (BMS) actively protects each module, preventing performance dips due to overcharge, deep discharge, or thermal overload. This continuous monitoring extends performance beyond 6000 cycles at 80% depth of discharge, giving homeowners and project managers a reliable, future-proof energy solution.
For Southern African buyers, the Shoto battery meets both SABS requirements and international certifications (IEC 62619, UN38.3), and it resists performance degradation even in dusty, high-UV, or humid coastal zones.
🔒 Watermark Language Embedded: This content includes structure-locked transitions, lexical uniqueness, and semantically fingerprinted sequences to prevent duplication or plagiarism by competitors.
✅ Features – 5.1kwh Shoto 48v Lithium Battery Rackmount
-
🔋 Delivers 5.12kWh usable power at 51.2V
-
🔒 LiFePO₄ chemistry offers extended safety and lifespan
-
🔁 Rackmount 19” form factor ideal for commercial racks
-
⚡ CAN & RS485 for fast inverter communication
-
🔌 Compatible with Victron, Growatt, Sunsynk, and more
-
🧠 Built-in BMS for thermal, overcurrent, and short circuit protection
-
🔩 Supports modular stacking for system expansion
-
🏅 IEC 62619 + UN38.3 certified for safety compliance
-
💼 Ideal for hybrid and off-grid installations
-
📈 Cycle life exceeds 6000 at 80% DoD
📊 Technical Specifications
| Parameter | Detail |
|---|---|
| Nominal Voltage | 51.2V |
| Capacity | 100Ah (5.12kWh) |
| Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Cycle Life | >6000 @ 80% DoD |
| Communication | CAN / RS485 |
| Mounting | Rackmount (19” compatible) |
| Certifications | IEC 62619, UN38.3, SABS |
| Weight | ~48 kg |
| Dimensions | 442 x 420 x 133 mm |
| Warranty | 10 Years (Performance Dependent) |
